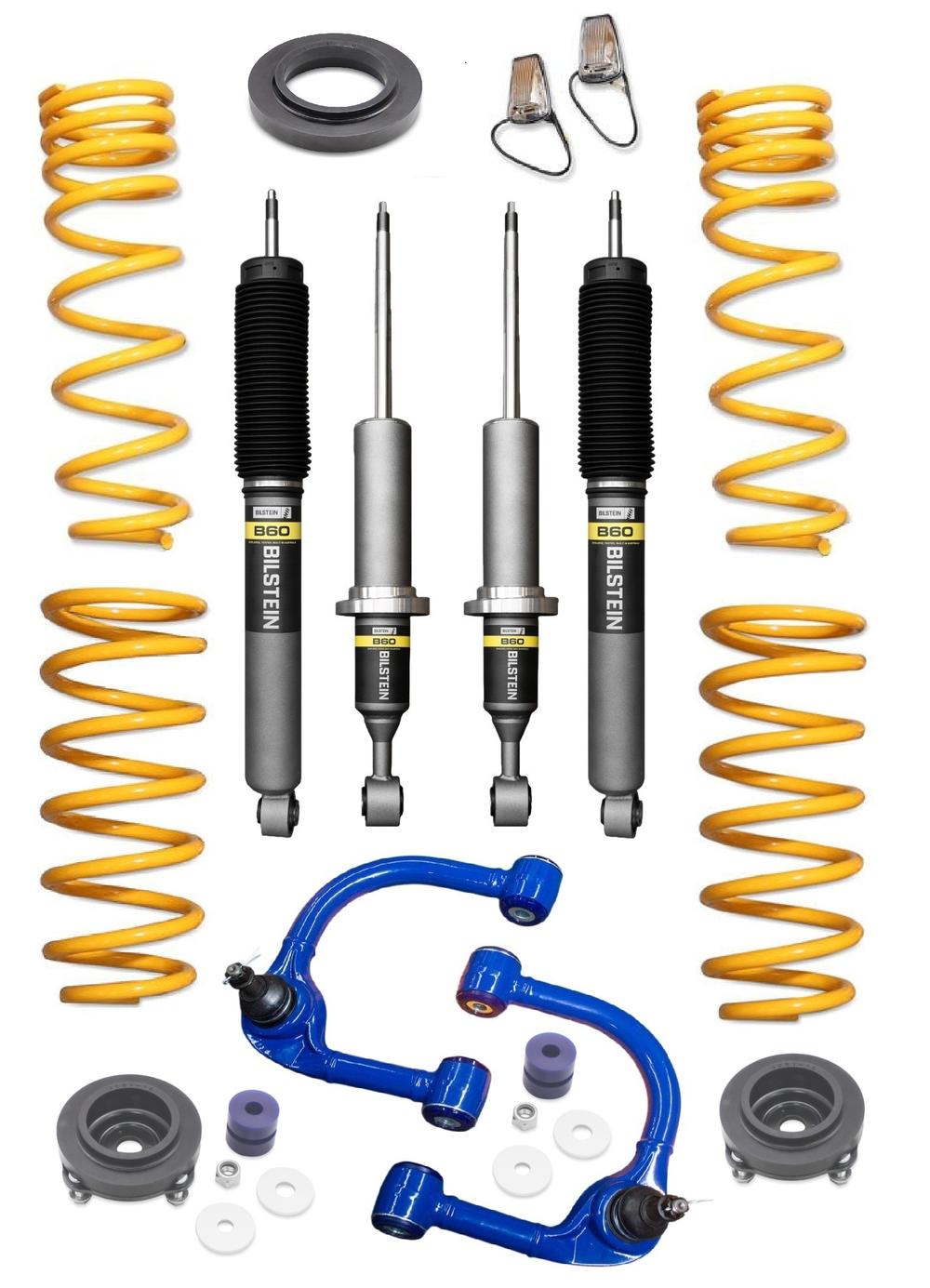

4000kg Bilstein B60 GVM Upgrade Kit to suit Toyota LandCruiser 200 Series KDSS Models (2007-2021)
Purpose-built to increase the Gross Vehicle Mass to 4000kg, this Bilstein B60 GVM Upgrade Kit has been engineered specifically for Toyota LandCruiser 200 Series KDSS-equipped models (2007-2021). Developed to suit the unique hydraulic sway bar configuration of KDSS vehicles, this package delivers enhanced load carrying capability while maintaining chassis balance, control and full legislative compliance.
Engineered Compliance & Installation Framework
GVM upgrades require formal engineering approval, certification and mod plating in accordance with state legislation. Accordingly, this upgrade can only be installed at an Authorised and Approved Fulcrum Suspension Workshop.
Through our Click & Fit service, you can purchase this GVM kit online and nominate a preferred authorised installer. Following your order, a Fulcrum suspension specialist will contact you to validate vehicle specifications, confirm KDSS configuration, intended load profile and operational requirements to ensure correct configuration and compliance outcomes.
GVM kits are shipped directly to certified dealers and must be installed by an authorised Fulcrum workshop.
Once installed, your LandCruiser 200 Series will be engineered, certified and compliant for state registration.
Suspension Performance & Capability
This GVM upgrade delivers a 40-50mm lift on loaded vehicles, with additional ride height when unladen.
This kit is 100% legal, engineered, road tested, approved and certified.
It is ideally suited to:
Vehicle manufacturer warranty is not affected when a compliant GVM upgrade is fitted.
All components are tested, assembled and built in Australia.
Bilstein B60 Shock Absorber Technology
At the core of this system are Bilstein B60 Heavy Duty monotube shock absorbers, engineered specifically for large 4WD wagons operating under sustained load and configured to integrate with KDSS suspension systems.
Key B60 features include:
The B60 platform has been developed to manage the higher mass and touring demands of the 200 Series, ensuring predictable handling, maintained KDSS functionality and long-term durability in demanding environments.
Additional Inclusions
Bilstein GVM Lift Kit Warranty:
3 Year Warranty - Activation required online.
High-Level Product Highlights
For operators requiring a compliant uplift in load capacity while retaining KDSS system integrity and vehicle stability, this Bilstein B60-based GVM upgrade delivers a professionally engineered solution aligned with operational performance requirements and legislative standards.
Lift Kit Height & Variation Overview
Understanding Lift Height Tolerances
Within the suspension industry, advertised lift heights are typically presented as a nominal increase. At Fulcrum Suspensions, we believe it is important to clearly outline how those figures are determined and why final results may vary.
The lift height referenced in a product title reflects the average increase achieved during testing and fitment across a broad range of vehicles. However, due to the inherent complexity of suspension systems and the unique condition of each vehicle, final lift outcomes will always fall within a tolerance range.
Factors influencing final ride height include:
When accurate constant load information is provided and the correct spring rates are supplied, the vehicle will achieve the intended lift height within acceptable engineering tolerance. External variables can result in a variation of up to approximately ±15mm from the advertised figure.
If a vehicle has pre-existing sag due to age or prolonged overloading, the measured increase may appear greater than advertised, as the new suspension restores the vehicle to OE ride height before adding the engineered lift increase.
Additionally, all vehicles leave the factory with minor ride height variations. As a result, before-and-after measurements will differ slightly between vehicles, even when identical lift kits are installed.
Providing accurate vehicle and load details is critical. Incorrect information may result in incorrect spring selection, which directly impacts final ride height and vehicle stance.
Springs, Load Ratings & Correct Setup
Springs are the primary component responsible for lifting your 4WD. Selecting the correct spring rate is essential to achieving the intended height increase and maintaining proper vehicle balance.
Following your purchase, our suspension specialists will contact you to confirm vehicle specifications, accessory fitment and constant load details before processing the order. This ensures the most appropriate configuration is supplied for your application.
Constant Load Considerations
A “constant load” refers to weight permanently carried in the vehicle or fitted 24/7. Examples include:
Spring rates must be matched to this ongoing weight. For example, if a vehicle consistently carries approximately 250kg, the selected spring should align with that load profile.
Both front and rear springs operate as a system. If either end is mismatched to the vehicle’s load, it can result in uneven ride height (nose-up or nose-down stance), which compromises performance and appearance.
Under-Rated vs Over-Rated Springs
Under-rated springs:
If the spring rating is lower than the constant load carried, premature sagging or failure may occur. Overloading can result from excessive tray weight, heavy accessory fitment or tow ball download from caravans, boats or trailers.
Example: Installing a 300kg-rated rear spring while consistently carrying 500kg will result in spring fatigue and loss of ride height.
Over-rated springs:
Selecting a spring rated significantly higher than your constant load can create an excessively firm ride. This may lead to reduced comfort and potential suspension issues such as shock top-out or coil seating problems.
Correct spring selection ensures ride comfort, durability and balanced vehicle dynamics.
Dynamic Loads & Airbag Assistance
If your vehicle occasionally carries additional load beyond its constant setup — such as towing a caravan or carrying weekend gear — supplementary airbag assistance may be required.
Airbag kits are not designed to replace springs or permanently carry weight. Instead, they provide additional support to manage intermittent load increases and maintain ride height under temporary demand.
Recommended Approach
For optimal results, we recommend finalising all constant load accessories prior to lift kit installation. This ensures accurate spring selection from the outset and avoids the need for future adjustments.
Our team will guide you through the process after purchase to confirm all relevant details. If you have questions prior to ordering, our technical advisors are available via phone or online chat to assist.
By ensuring accurate load data and proper configuration, your lift kit will deliver balanced ride height, predictable handling and long-term durability aligned with your vehicle’s intended use.
*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.
| SKU | CRUS-200GVM-KDSS-BIL |
|---|---|
| Foot Note 1 | Kit contains: Bilstein B60 Shock Absorbers 2 x B60-200FRT & 2 x B60-200RR, SuperPro Fixed Offset Upper Control Arm Kit 1 x TRC6485, SuperPro Strut Tops 2 x RS003, King Springs 1 x KTFR-130HD & 1 x KTPR-131, Cat 6 Indicators 77ACMB-LCSAHARA |
| Foot Note 2 | Kit contains: SuperPro Front RHS Coil Spring Spacer SPF3281-201K |
| Foot Note 3 | to suit KDSS vehicles |
| Components Per | 1 Kit |
| Sub brand | Formula 4x4 |
| Product Note | Formula F4R Adjustable Remote Reservoir Kit is set to: Front: 40mm Rear: 40mm |
| EAN | CRUS-200GVM-KDSS-BIL |
| Warranty | 3 years warranty |
